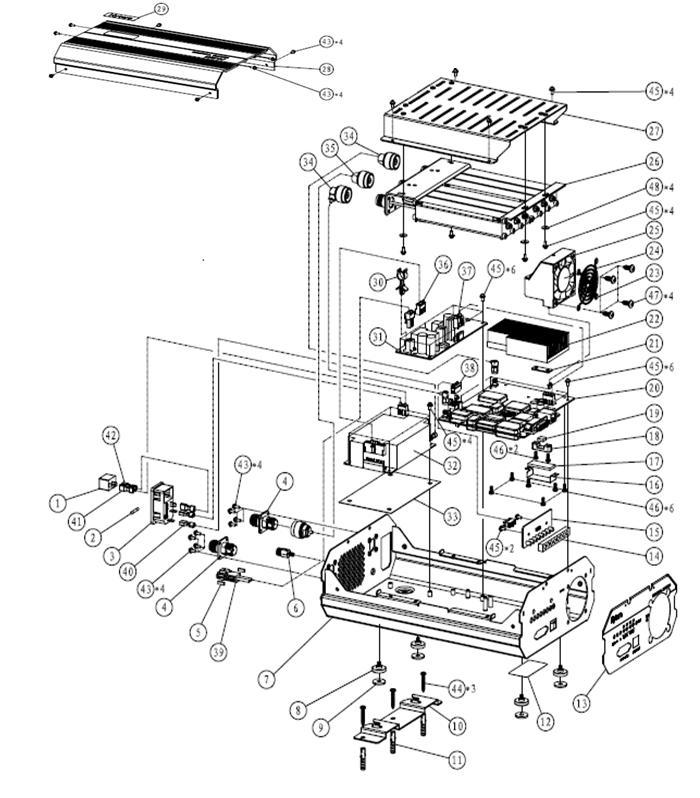

Si necesitas saber cual es el número de parte de un repetidor RD626; te adjuntamos la explosión que te ayudara a identificar cuál es.
Consulta el documento adjunto.
| Número | # de parte | Descripción |
| 1 | 4399010000000 | Power switch BR-12C-11L 250VAC 5A CSA DIP Pronic (RoHS) |
| 2 | 4099000000150 | Fuse 02173.15MXP 250V 3.15AA Tube 5*20mm LITTELFUSE (RoHS) |
| 3 | 5205003100210 | Cocket JR-101-1FRS(1.5) 3pin -25～85℃ L47.0mm*W28.0mm Ac socket (RoHS) (REACH) |
| 4 | 4408100002000 | RF connector (adapter) 50Ω N/F to N/F N to N adapter female TR-800 (RoHS) |
| 6 | 7104008000600 | RD620 Earthing terminal (RoHS)(REACH) |
| 7 | 6203264000000 | RD620 bottom case AL5052 t=1.5mm 00 (RoHS)(REACH) |
| 8 | 7104005000010 | RD620 The hanging wall of the screw M4*5mm SUS304 1/4H 01 (RoHS)(REACH) |
| 9 | 6100994000000 | RD620 MATS t2mm φ18mm 60±5°black 00 (RoHS) (REACH) |
| 10 | 6203271000000 | RD620 Hang on the wall of the mounting bracket |
| 11 | 7500761000000 | Expansion rubber plug |
| 12 | 86RD960100010 | Blank label for RD960 repeater/battery 60*31mm 01 (RoHS) |
| 13 | 86RD620700000 | RD62X front panel PC label(Hytera LOGO) 0.5x208x88.9 mm 00 (RoHS) |
| 14 | 7500662000000 | RD620 front-panel LED mat EVA 30±5°t7.0mm 76mm*10mm (RoHS)(REACH) |
| 15 | 1302RD6200040 | RD620 LED Semi-finished products (RoHS) |
| 16 | 6203270000000 | RD620 PA Conductive sponge clamp t0.5mm SUS304 00 (RoHS)(REACH) |
| 17 | 7500549000000 | Conductive sponge for RD960 PA shielding mask t=3mm 36*15mm single-sided adhesive tape 00(RoHS)(REACH) |
| 18 | 6300189000000 | RD960 PA briquetting ADC12 00 (RoHS)(REACH) |
| 19 | 7500661000000 | RD620 Rubber cushion of PA 60±5°9mm*9mm*t3.0mm with adhesive single side 00 (RoHS)(REACH) |
| 20 | 150RD62000000 | RD620 LED semi-finished(after solder)(RoHS) |
| 20 | 1202RD6200120 | RD620 U(1)(400-470MHz) mainboard semi-finished(after solder) AMBE++ (RoHS) |
| 20 | 1302RD6200100 | RD620 U(1)(400-470MHz) mainboard semi-finished(after solder) SELP (RoHS) |
| 20 | 1302RD6200130 | RD620 U(2)(450-520MHz) mainboard semi-finished(after solder) AMBE++ (RoHS) |
| 20 | 1302RD6200140 | RD620 U(2)(450-520MHz) mainboard semi-finished(after solder) SELP (RoHS) |
| 20 | 1302RD6200110 | RD620 VHF (136-174MHz) mainboard semi-finished(after solder) AMBE++ (RoHS) |
| 20 | 1302RD6200120 | RD620 VHF (136-174MHz) mainboard semi-finished(after solder) SELP (RoHS) |
| 21 | 6203269000000 | RD620 PA Heat sinks t1.2mm 00 (RoHS)(REACH) |
| 22 | 6203266000000 | RD620 PA Heat sinks AL6063 00 (RoHS)(REACH) |
| 23 | 7000393000000 | Protecting can for fan 60*60 00 (RoHS) |
| 24 | 5401000000200 | FAN 2406KL-04W-B49 12V 0.17A 4600RPM 60*60*15mm The length of the wire is 15CM JST B3B ZR Pluger NMB (RoHS) (REACH) |
| 25 | 6203267000000 | RD620 Ventilation hood AL5052 t1.0mm 00 (RoHS) (REACH) |
| 26 | 3804384770009 | Duplexer SQG-450 |
| 27 | 6203268000000 | RD620 Diplexer fixed bracket SPCC t1.5mm 00 (RoHS)(REACH) |
| 28 | 6203265000000 | RD620 The lid of the above AL6063 00 (RoHS)(REACH) |
| 29 | 86RD960600000 | Hytera logo label for RD960 repeater PC 60.4*20.9mm 00 (RoHS) |
| 30 | 7500660000000 | Wire mount KangYang P/N:SLC-21 PCB holeφ4.8mm PCB thickness0.8～2.0mm Highness 35.8mm wire hole φ8.6mm 00(RoHS) (REACH) |
| 31 | 1615000000290 | RD620 Charging panel (RoHS) |
| 32 | 1615000000280 | MEAN WELL AC-DC PPS-200-15(HYT) RD620 DCDC 22OV/1.2A IN 13.5V/13A OUT (RoHS) |
| 33 | 7400556000000 | The insulating sheet at the bottom of the switch power of RD620 PC t0.5mm black 136mm*85mm adhesive one side 00 (RoHS)(REACH) |
| 34 | 4220190000400 | RF cable of RD620 90°SMA/M to 90°N/M 50Ω 0～4GMHz .085 light blue -40～105℃ 163mm Amphenol (RoHS) (REACH) |
| 36 | 4200210000000 | Power cord of RD620 16AWG 4cores black+red 10A UL1015 120mm/140mm from switch power to charger PCB 00 (RoHS) (REACH) |
| 37 | 4200210000100 | Power cord of RD620 16AWG 4cores black+red 10A UL1015 197mm from charger PCB to main PCB 00 (RoHS) (REACH) |
| 38 | 4210160000300 | signal cable 28#AWG 10pin PH=2.54 grey - L=160mm 4401-10SR(Neltron) 00 (RoHS) |
| 39 | 4200180001400 | The power cord 14AWG 10A UL1015 180mm RD620 DC 00 (RoHS) (REACH) |
| 40 | 4200090000200 | Power cord of RD620 18AWG 1core yellow/green 3A UL1015 90mm grounding wire of AC connector 00 (RoHS) (REACH) |
| 41 | 4200090000400 | Power cord of RD620 18AWG 1core brown 3A UL1015 80mm jumper wire of AC connector 00 (RoHS) (REACH) |
| 42 | 4200090000300 | Power cord of RD620 18AWG 2cores brown+blue 3A UL1015 80mm from AC connector to switch power 00 (RoHS) (REACH) |
| 43 | 7103008001000 | Machine screw M3.0*8.0mm T10 00 (RoHS) |
| 45 | 7103007000000 | Machine screw M3.0*7.0mm cross recessed 00(RoHS) |
| 46 | 7103008000400 | Machine screw M3.0*8.0mm, T10 torx recessed, half-round head, with rebound pad, stainless steel 00(RoHS) |
| 47 | 7105012020000 | Self-tapping screw ST5.0*12 cross recessed semi-circle head stainless steel passivated 00(RoHS) |

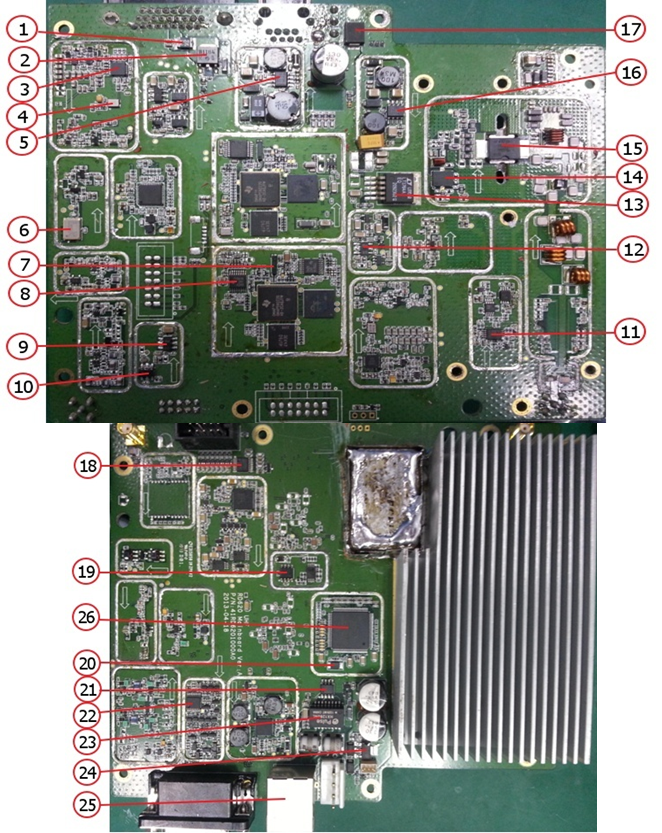

| PCB | ||
| 1 | 4002000000340 | Reparable FUSE 1812L150/24 24V 1.5A 1812 LITTELFUSE (RoHS) |
| 2 | 3403002000010 | PNP transistor 2SB1184 -50V -3A 80~390 .55~+150℃ SC-63 ROHM (RoHS) |
| 3 | 3604019000000 | 【MSL3】Synthesizer IC SKY72310-362LF 2.1 GHz 3V –40~+85°C QFN-24 SKYWORKS (RoHS) |
| 4 | 3804019250000 | Voltage controlled crystal oscillator DSA321SDA(VC-TCXO) 19.2MHz 3.3V±0.3V 0.5ppm/3.3V 40～+85°C 3.2mm*2.5mm KDS |
| 5 | 3608010000350 | [MSD3] Power management IC TPS5430DDA BUCK DC-DC 5.5V-36V 1.22-30V 3A |
| 6 | 3802733540030 | Crystal filter D73312GQ22 73.35MHz ±6kHz 5.0dB -30~70℃ 7.0*5.0mm |
| 7 | 3701327610060 | Crystal SSP-T7F 32.768KHz ±20ppm 12.5pF -40℃~+85℃ SMD SEIKO (RoHS) |
| 8 | 3606010000010 | D/A IC TLV5614IPWRG4 12-BIT 20MHZ 2.7~5.5V –40~ 85℃ TSSOP-16 TI (RoHS) |
| 9 | 3608015000060 | Power management IC XC6209F502PR LDO 5V 300mA -40~+85℃ SOT-89-5 TOREX |
| 10 | 3608015000210 | Power Management IC XC6209F332PR LDO 12V 3.3V 300mA -40℃～85℃ SOT |
| 11 | 3605008005070 | Operational amplifier NJM2904V 3~32V 300mW 100dB 2运放 -40~+85℃ SSOP8 |
| 12 | 3608015000060 | Power management IC XC6209F502PR LDO 5V 300mA -40~+85℃ SOT-89-5 |
| 13 | 3608011000090 | 【HMF】Power management IC LT1764AEQ#(TR)PBF ADJ LINEAR (0794.6310.00) |
| 14 | 3504990000050 | PA MOSFET RD02MUS1B-T112 1.5A 30V 1.5A 1.8V 3W 150℃ 6.0*4.9*0.9 |
| 15 | 3601017000000 | 【moistureproof】RF PA module PD85035STR1-E 35W 870M 14.9db 13.6V 165℃ |
| 16 | 3608010000500 | Power management IC TPS54340DDAR DC-DC 4.5V~42V 0.8V~41V 3.5A -40~150℃ HSOIC-8 TI |
| 17 | 3399100000010 | TVS diode 3.0SMCJ20A 20V 84.5A 175°C SMC DIODES (RoHS) (REACH) |
| 18 | 3607023000150 | Logic IC 74AHCT594PW serial-to-parallel converter 2~5.5V -40~125℃ TSSOP16 |
| 19 | 3609010000210 | Reset IC TPS3705-33DR 3.3V 2.93V -40~85℃ SOIC8 Watchdog TI (RoHS) |
| 20 | 3701002560000 | Crystal DSX321G-25.000 25MHz ±10ppm 8PF -40~+85℃ 3.2*2.5mm SMD KDS |
| 21 | 3310350000020 | TVS Diode Array SLVU2.8-4.TBT 2.8V 24A/8/20us -55~+125℃ SO-8 SEMTECH |
| 22 | 3607023000150 | Logic IC 74AHCT594PW serial-to-parallel converter 2~5.5V -40~125℃ TSSOP16 |
| 23 | 5406000000120 | Transformer HX1260 POE Standard 1:1 SOIC-16 pulse (RoHS) |
| 24 | 3413999000000 | NPN transistor FZT651 60V 3A 100 -55~+155℃ SOT223 ZETEX (RoHS) (REACH) |
| 25 | 5205008200130 | RJ45 AJ-068SH-8-F-R1-B4-N4-GG 8Pin 12.8X15.8X15.1mm ALLSUN (RoHS) |
| 26 | 3609999007670 | Port Managed Ethernet Switch LAN9311i-NZW 3.3V -40~85℃ XVTQFP-128 SMSC |
