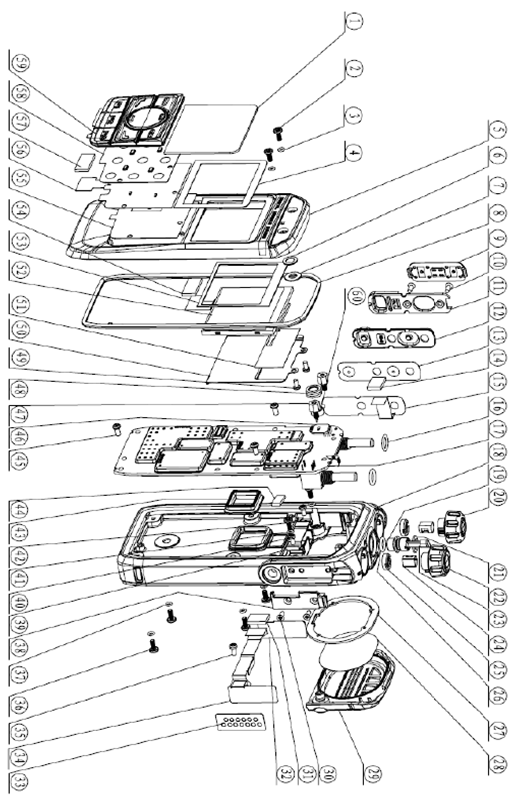

Si necesitas saber cual es el número de parte de un radio PD666; te adjuntamos la explosión que te ayudara a identificar cuál es.
Consulta el documento adjunto.
| Número | # de parte | Descripción |
| 5 | 152PD66000100 | Repair kit for PD660 front case (RoHS) |
| 1 | 6002199000010 | PD680 Lens stalinite T=0.80mm 01 (RoHS) |
| 2 | 7102004000200 | Machine Screw M2*4.8mm pulm bolssom T8 pan and round head, stainless steel 00 (RoHS) |
| 3 | 6100527100000 | Waterproof ring for 2.0 screw,ID1.75x0.8mm, blue, 40°high tensile silicone rubber 00(RoHS) |
| 4 | 7500800000000 | PD680 LCD Double-sided adhesive DIC WSR300BK t=0.3mm 00 (RoHS) |
| 6 | 7400530000000 | PD700 Waterproof MIC net Φ7.4mm single-sided adhesive tape 00(RoHS) |
| 7 | 7400329000000 | PD-780 Mic Pad 0.5mm-thick black PC OD7.8*ID4.0*T0.5mm single-sided adhesive tape 00(RoHS) |
| 8 | 6101044000000 | PD680 O-ring silica gel (RoHS) |
| 9 | 6002028000000 | PD600 PTT key cover black+orange PC(EXL9330) 00 (RoHS) |
| 10 | 7102004000800 | Machine screw M2.0*4mm cross recessed SUS304 00 (RoHS) |
| 11 | 6002027000000 | PD600 PTT bracket black PC(EXL9330) 00 (RoHS) |
| 12 | 6100968000000 | PD600 Silicone rubber PTT key 60A black 00 (RoHS) |
| 13 | 7300118000000 | PD600 Metal dome for PTT key SUS301 200gf 2-key 00 (RoHS) |
| 14 | 7500795000000 | PD680 10pin PORON 6.6*6.6*t=1.8mm 00 (RoHS) |
| 15 | 1300PD6800050 | PD680/PD660 PTT semi-finished FPC chip (RoHS)(REACH) |
| 16 | 6100334000000 | TC-610 Encoder switch O-ring ID 5.0*1.5 red 70A high-tensile silicone rubber 00 (RoHS) |
| 17 | 1200PD6600270 | PD660 G Um Radio unit without aluminum chassis(400-527MHz) 1/4W AMBE++ (RoHS)(REACH) |
| 1200PD6600300 | PD660 G Um Radio unit without aluminum chassis(400-527MHz) 1/4W SELP (RoHS)(REACH) | |
| 1200PD6600340 | PD660 G VHF Radio unit without aluminum chassis(136MHz-174MHz) 1/5W AMBE++ (RoHS)(REACH) | |
| 1200PD6600380 | PD660 G VHF Radio unit without aluminum chassis(136MHz-174MHz) 1/5W SELP (RoHS)(REACH) | |
| 1200PD6600250 | PD660 GMD Um Radio unit without aluminum chassis(400-527MHz) 1/4W AMBE++ (RoHS)(REACH) | |
| 1200PD6600320 | PD660 GMD Um Radio unit without aluminum chassis(400-527MHz) 1/4W SELP (RoHS)(REACH) | |
| 1200PD6600360 | PD660 GMD VHF Radio unit without aluminum chassis(136MHz-174MHz) 1/5W AMBE++ (RoHS)(REACH) | |
| 1200PD6600400 | PD660 GMD VHF Radio unit without aluminum chassis(136MHz-174MHz) 1/5W SELP (RoHS)(REACH) | |
| 1200PD6600280 | PD660 MD Um Radio unit without aluminum chassis(400-527MHz) 1/4W AMBE++(RoHS)(REACH) | |
| 1200PD6600310 | PD660 MD Um Radio unit without aluminum chassis(400-527MHz) 1/4W SELP(RoHS)(REACH) | |
| 1200PD6600350 | PD660 MD VHF Radio unit without aluminum chassis(136MHz-174MHz) 1/5W AMBE++ (RoHS)(REACH) | |
| 1200PD6600390 | PD660 MD VHF Radio unit without aluminum chassis(136MHz-174MHz) 1/5W SELP (RoHS)(REACH) | |
| 1200PD6600260 | PD660 Um Radio unit without aluminum chassis (400-527MHz) 1/4W AMBE++ (RoHS)(REACH) | |
| 1200PD6600290 | PD660 Um Radio unit without aluminum chassis (400-527MHz) 1/4W SELP (RoHS)(REACH) | |
| 1200PD6600330 | PD660 VHF Radio unit without aluminum chassis(136MHz-174MHz) 1/5W AMBE++ (RoHS)(REACH) | |
| 1200PD6600370 | PD660 VHF Radio unit without aluminum chassis(136MHz-174MHz) 1/5W SELP (RoHS)(REACH) | |
| 31 | 7500796000000 | PD680 20pin PORON 9*6.8*t=0.8mm 00 (RoHS) |
| 32 | 7500721000000 | PD600 Double-sided adhesive tape for accessory connector L24*W9.4*T0.30mm DIC WS300BK 00 |
| 33 | 7400609000000 | PD600 PC sheet for earpiece black single-sided adhesive tape 00(RoHS) |
| 34 | 1300PD6800110 | PD680/PD660 13PIN semi-finished FPC chip (RoHS)(REACH) |
| 35 | 7101904020200 | Self-tapping screw (V2) ST1.9*4.0mm carbon steel cross recessed pan and round head nickel plated 00 |
| 36 | 7102004000200 | Machine Screw M2*4.8mm pulm bolssom T8 pan and round head, stainless steel 00 (RoHS) |
| 37 | 6100527100000 | Waterproof ring for 2.0 screw,ID1.75x0.8mm, blue, 40°high tensile silicone rubber 00(RoHS) |
| 38 | 6300256000000 | PD680 The lid of the headphone jack ADC12 00 (RoHS) |
| 39 | 6203584000000 | PD680 The motor of baffle SUS301 T=0.5mm 00 (RoHS) |
| 40 | 7101904020200 | Self-tapping screw (V2) ST1.9*4.0mm carbon steel cross recessed pan and round head nickel plated 00 |
| 41 | 6100527100000 | Waterproof ring for 2.0 screw,ID1.75x0.8mm, blue, 40°high tensile silicone rubber 00(RoHS) |
| 42 | 7102005000600 | MACHINE-MADE SCREW M2.0*5.0 CROSSED-SLOT CROP(DIA4.5) CARBON STEEL PLATING-Zn NYLOK 00 |
| 43 | 6101037000000 | PD600 waterproof ring for battery connector, orange, 40 Shore A, silicone rubber 00 (RoHS) |
| 44 | 7500715000000 | PD600 POWER- AMPLIFICATION COOLING- PAD BMC STG4015 9.8*6.0*T=1.0 00 (RoHS) |
| 45 | 7101904020200 | Self-tapping screw (V2) ST1.9*4.0mm carbon steel cross recessed pan and round head nickel plated 00 (RoHS) |
| 46 | 7500356000000 | PD780 MIC PAD Black rubber 80 Degree 8*7.8*1.0mm Single-sided adhesive(RoHS) |
| 47 | 7102004500000 | Hexagonal nut stainless steel column M2*4.5 (RoHS) |
| 48 | 6100111000010 | TC3000 Silicone microphone cover black Silicone Hardness: 30°01 (RoHS) |
| 49 | 7101904020200 | Self-tapping screw (V2) ST1.9*4.0mm carbon steel cross recessed pan and round head nickel plated 00 (RoHS) |
| 50 | 6203585000000 | PD680 LCD Support of the shelf SUS304 T=0.3mm 00 (RoHS) |
| 51 | 7500794000000 | PD680 LCD Support of the shelfPORON T=0.2mm 00 (RoHS) |
| 52 | 5130000000150 | TFT LCD CCPASZ0685 3.3V 160*128 -30~+75℃ 1.77" TRULY (RoHS) (REACH) |
| 53 | 7500793000000 | PD680 LCD Poron(PSR) 00 (RoHS) |
| 54 | 7500797000000 | PD680 LCD FPC poron 14.0*6.7*t=1.5mm 00 (RoHS) |
| 55 | 7500803000000 | PD660 Double faced adhesive tape 3M9448 t=0.1mm 00 (RoHS) |
| 57 | 7500799000000 | PD680 Keypad FPC PORON 12.3*6.7*t=0.8mm 00 (RoHS) |
| 58 | 7300133000000 | PD660 The function of the metal bond 00 (RoHS) |
| 59 | 6101068000000 | PD680 P+R keypad PC 00 (RoHS) |
